SPA Female – EWPA Male

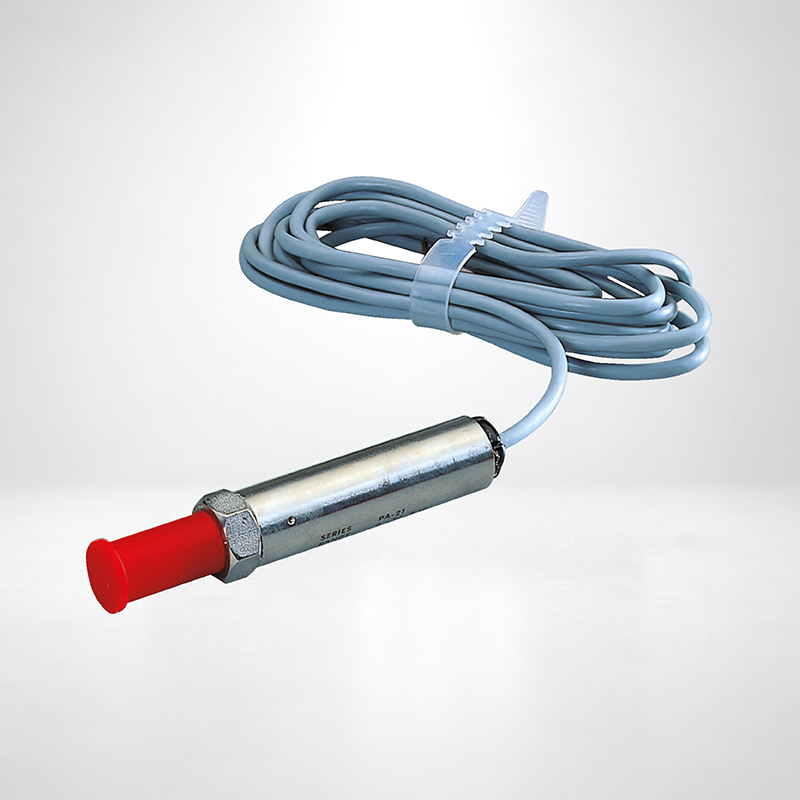

Pressure transducers 4..20mA


“They have a current output through which they send the signal to the measuring devices to which they are connected.
“High accuracy over a wide temperature range.
“Hermetically sealed.
“Extremely compact design.
They operate with refrigerant gases, CO₂, NH₃, water and other liquids.
“IP65(SPA) / IP54(EWPA) protection.
“Working temperature: -40/+100°C.
“Current output 4..20mA.
“2-wire connection:
Brown: power supply 8/32Vdc – White: signal 4..20mA

Additional information


SPA 007, SPA 030, SPA 050, SPA 150, EWPA 007, EWPA 030
