Programmable Free Optima

SKU: PLC Free Optima Category: Tags: , , ,

Description

Powerful PLC for compact machines

The programmable Free Optima offers numerous connectivity options, a larger memory than Free Smart and an integrated valve controller, all in the most compact 4 DIN format.

Free Optima features:

  • Prepared for low GWP low GWP
  • Green Premium Product
  • 1MB to support simple and complex programs
  • Less is more. Isolation at all levels to simplify the machine layout and reduce the number of components required.
  • Adaptive. One unit for super compact machines; for larger ones just add I/O expansions.
  • Multiple connection capabilities to other devices within the machine, Modbus RTU client and server, CANopen, USB-C Bus for remote viewing.
  • Reduced dimensions. 4-DIN module in three versions
  • Flexible and configurable; 22 I/O to adapt to different machines. Inputs: NTC.PT, 0…5V. 0…10V, 4…20mA, voltage free, pulse counter. Outputs: Relay, SSR, PWM, 0…10V, 4…20mA.
  • Ready-to-use applications that simplify IEC programming – Various templates, libraries, function blocks available
  • IoT at your fingertips

PLC applications

Ideal for heat pumps, heat recovery units, industrial and process chillers, air handling units, firefighting units, etc.

Free Optima Models

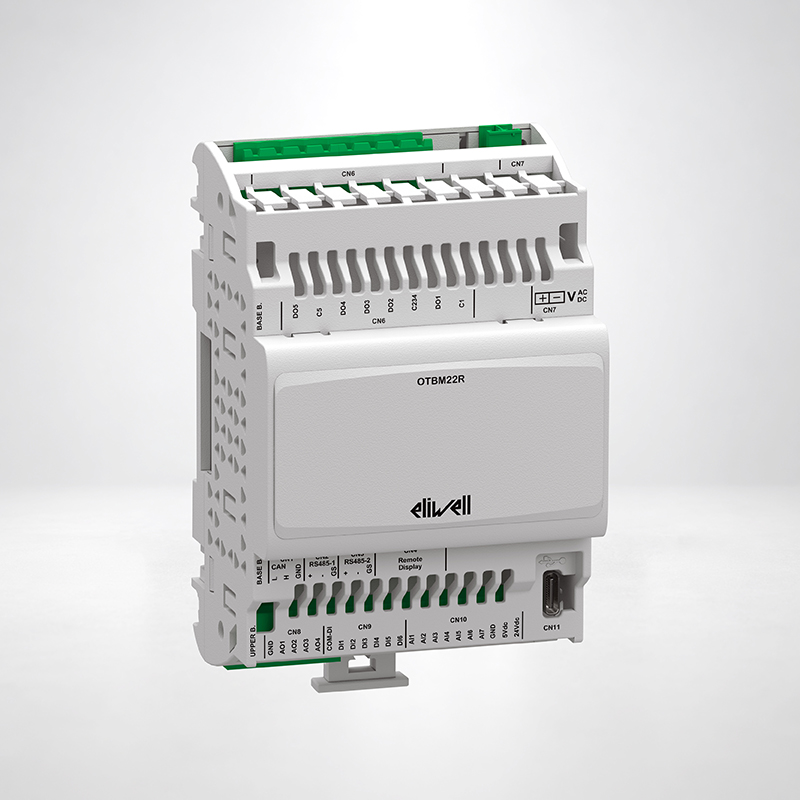

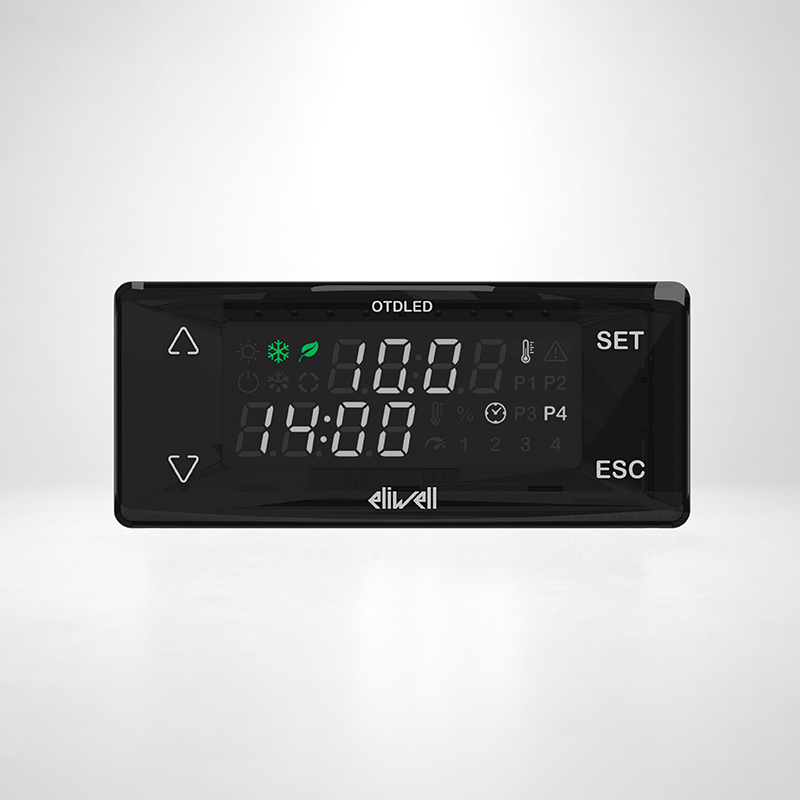

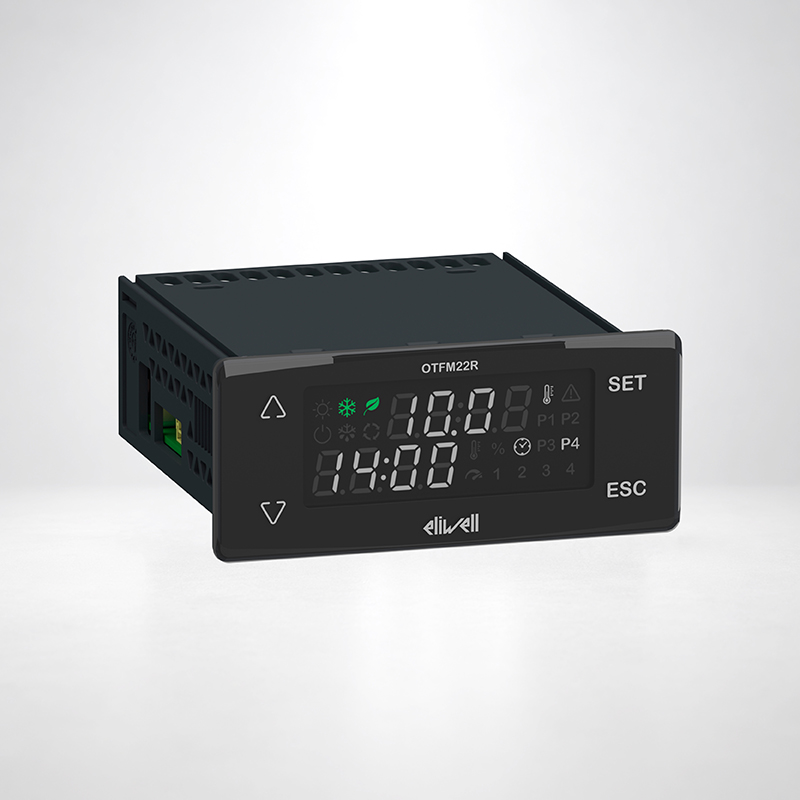

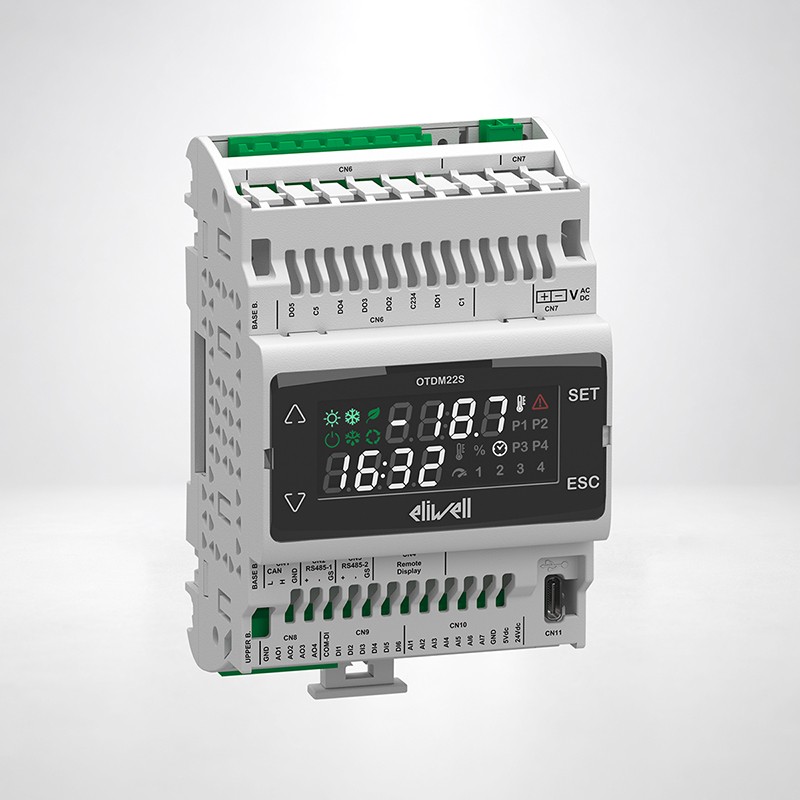

Available both in 4 DIN format (OTD with display, OTB blind), as well as in the consolidated 32x74mm format for panel mounting (OTF) with 24 Vac/dc or 230/110 Vac power supply (available only for OTD and OTB). OTD is also available with integrated valve controller (OTDE).

Contact our sales team for any questions you may have: comercial@eliwell.es
