Control solution with CO₂ transcritical booster/parallel compression application.


“Solution for sustainable systems based on natural refrigerants.

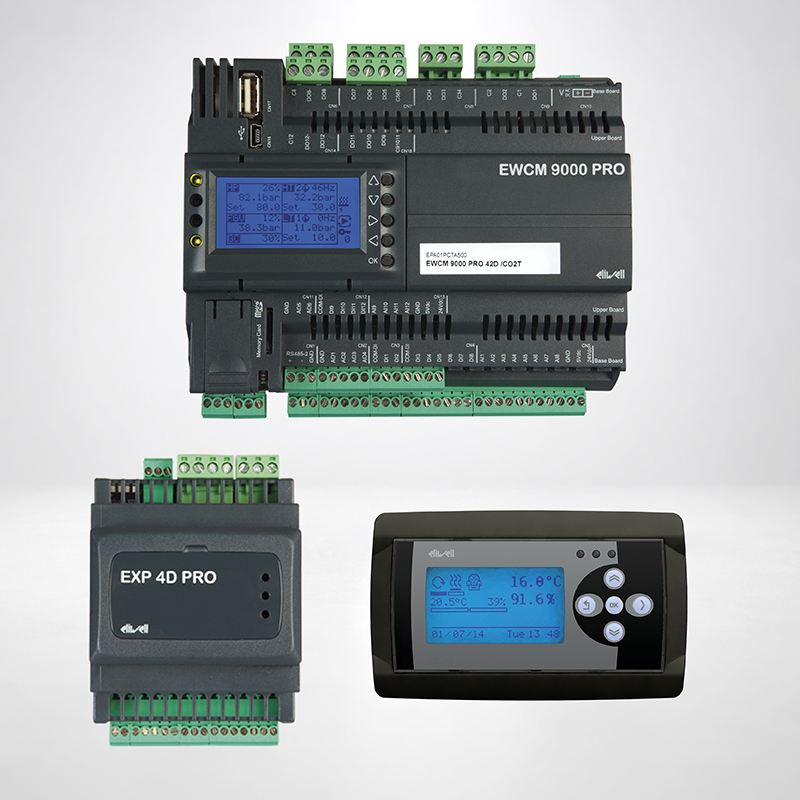

EWCM 9000 PRO is used for solutions for transcritical CO₂ with booster circuit and allows to manage up to 2 circuits for heat recovery. It is compact and can be expanded with configurable modules and keypads thanks to the supplied software tools to quickly adapt to different installation solutions.
EWCM 9000 PRO-HF allows the control to be tailored to specific needs by integrating and modifying the control software application. The FREE Studio development tool allows the full potential of the control to be exploited by reconfiguring the I/O, taking advantage of the extensive field and system connectivity offered on board the control.
“The control connects to the Televis system, Modbus/RTU and Modbus/TCP systems and has a data logging system for diagnostics.
“Management of 2 circuits of up to 8 compressors.
“Parallel booster/compression management up to 4 compressors.
“Modulating Gas Cooler fans management.
“Expandable up to 12 modules EXP 4D PRO
“Up to 2 optional remote displays
“Freely programmable control with Free Studio (only model EWCM 9000 PRO-HF)

Additional information


EWCM 9000 PRO 42D /CO2T, EWCM 9000 PRO-HF 42D /CO2T
